Всички възможни дейности във фермата, леки работни операции и полева работа в умерено големи ферми – моделите от новата серия 5D Keyline са просто идеални за малки ферми и хоби фермери. Впечатляваща технилогия: 3- цилиндровите двигатели FARMotion с оптимизиран работен обем доставя от 65 к.с. (48 кВт) до 97 к.с. (71 кВт) с върхово представяне, горивна ефективност и най-ниски стойности на вредни емисии. Двигател FARMotion с common-rail впръскване 2000 бара, с електронно управление, системи EGR и DOC, Компактен радиатор с Visco вентилатор и PowerCore въздушен филтър за максимална ефективност на двигателя – истинска технология, граничеща с изкуството. Предлагат се 2 вида маханични, 5-скоростни трансмисии с реверс: 15 + 15 or 30 + 15. Просто и ефикасно: всички тези трактори достигат скорост 40 км/ч при само 1 870 об/мин. Всички модели от серията 5D Keyline имат задвижване 4х4 и спирачки на четирите колела. Задвижването 4х4 и блокажа на диференциалите на 100% имат електрохидравлично управление. Многофункционалност: 50 л/мин хидравлична помпа, 3 механично контролирани двойки хидравлични клапана, Заден навес с капацитет 3,500 кг и заден ВОМ с три скорости. Комфорна кабина: видимост 360о, широки врати и ергономична работна среда. Новата серия 5D Keyline е правилният избор за тези, които искат да работят икономично и надеждно.
State-of-the-art, displacement-optimised three-cylinder FARMotion engines with power outputs ranging from 65 HP (48 kW) to 97 HP (71 kW) can be found under the hood of the new 5D Keyline series models (exhaust emissions standard IIIB).
All new 5D Keyline models are equipped with a mechanical five-speed shuttle transmission.
All new 5D Keyline series models come with all-wheel drive and wet disc brakes on all four wheels. A selector valve ensures that the braking force is distributed across the individual wheels.
Anyone climbing into the 5D Keyline series will immediately get the sense that it is a great place to work. Wide doors, a bright and welcoming atmosphere, plus 360° all-round visibility help farmers work efficiently.

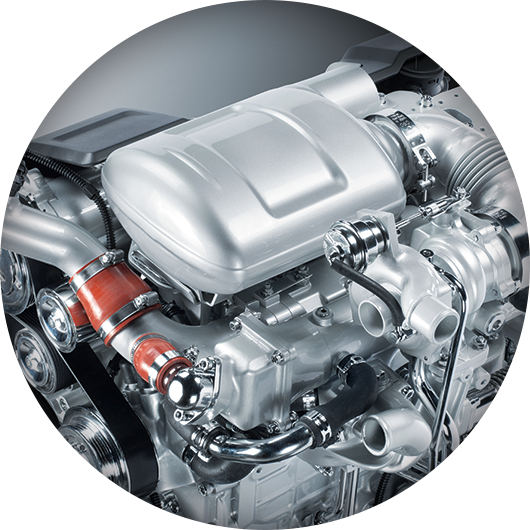

State-of-the-art, displacement-optimised three-cylinder FARMotion engines with power outputs ranging from 65 HP (48 kW) to 97 HP (71 kW) can be found under the hood of the new 5D Keyline series models (exhaust emissions standard IIIB). These engines have been specially developed for use in the agricultural industry. Electronic 2000 bar common-rail fuel injection, charge air cooling and DOC exhaust gas filtration guarantee high power delivery and a high torque with minimal fuel consumption and low emission values. The newly developed compact radiator with viscous-drive fans and PowerCore air cleaner promotes engine efficiency. The cooling system is also easily accessible, which significantly simplifies maintenance and cleaning work.
All new 5D Keyline models are equipped with a mechanical five-speed shuttle transmission. There are two versions available: A 15+15 gear version with creeper for speeds from 287 m/h to 40 km/h, and a 30+15 gear version with creeper and range transmission for speeds from 237 m/h to 40 km/h. The final speed of 40 km/h can already be reached in ECO mode at 1870 rpm on both versions. This enables precise and efficient driving in all applications.
The new 5D Keyline models are genuine all-round tractors. The PTO shaft equipment options are accordingly versatile. Three configurations are available: 540/540 ECO, 540/540 ECO/1000 and 540/540 ECO plus live PTO shaft. This allows all relevant equipment to be operated highly economically. The PTO shaft is activated manually using a lever. This ensures smooth, jolt-free start-up. To meet international safety requirements, all 5D Keyline models feature a STANDSTILL PTO shaft switch. If the driver leaves the tractor with the PTO shaft running, they must press a button to confirm that the PTO shaft will continue to operate. If they do not provide this confirmation, the PTO shaft will switch off after seven seconds.

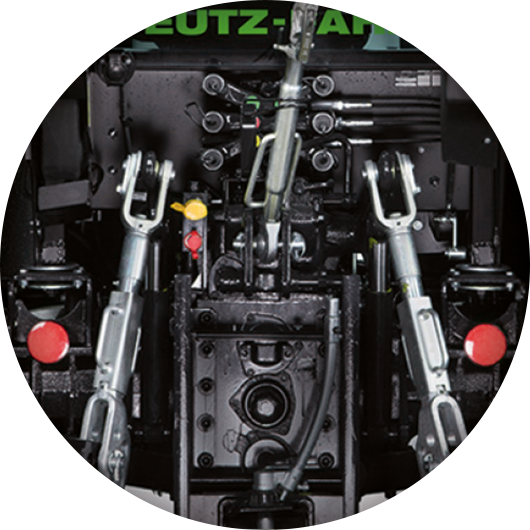

The hydraulic equipment in particular gives a good indication of how well a tractor can fit in with your enterprise. With the new 5D Keyline models, you have complete control over all relevant equipment. The 50 l/min OpenCenter pump powers two or even three additional mechanical control valves at the rear. The DEUTZ-FAHR rear power lift with mechanical lifting gear adjustment (MHR) is known for its precise and efficient control system and can lift 2500 kg as standard. This figure increases to 3500 kg with an additional cylinder. External operation from the rear mudguard also possible as an option.
All new 5D Keyline series models come with all-wheel drive and wet disc brakes on all four wheels. A selector valve ensures that the braking force is distributed across the individual wheels. When both brake pedals are depressed, all four wheels are braked. When the left-hand pedal is depressed, the rear-left wheel is braked. When the right-hand pedal is depressed, the rear-right wheel is braked. This provides maximum safety in all situations. A hydraulic trailer brake is available on request (country-specific).

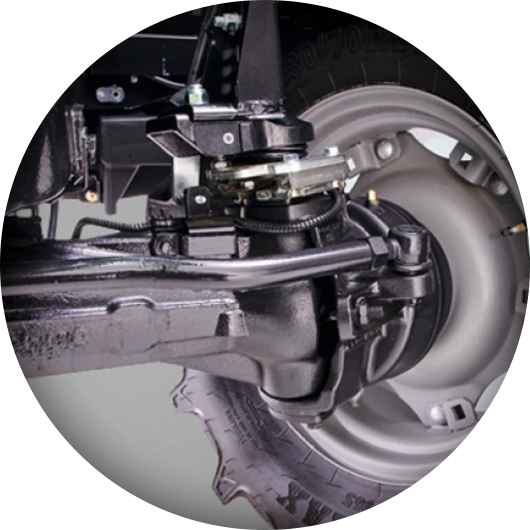

The front axle was developed by DEUTZ-FAHR specially for this horsepower class. The four-wheel drive system and 100% differential lock can be electrohydraulically operated at the touch of a button. The 55° steering angle guarantees maximum manoeuvrability.

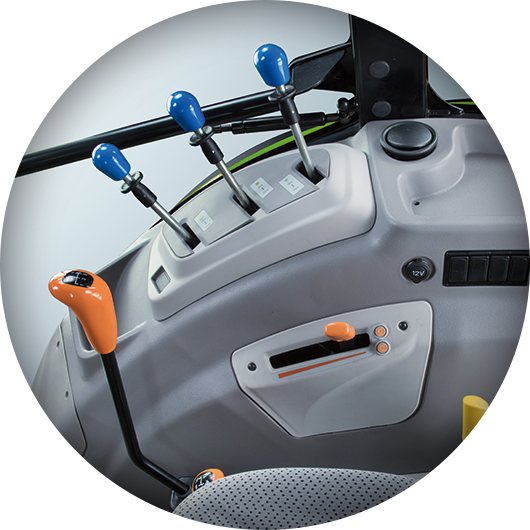

Anyone climbing into the 5D Keyline series will immediately get the sense that it is a great place to work. Wide doors, a bright and welcoming atmosphere, plus 360° all-round visibility help farmers work efficiently. As is standard with DEUTZ-FAHR, all controls are logically arranged according to the frequency with which they are used, placed within easy reach and colour-coded. The instrument cluster in the adjustable steering column provides the driver with continuous information regarding all operating statuses. Analogue and digital. Three roof options are available. A standard roof with FOPS protection, a glass roof without FOPS, and a high-visibility polycarbonate cab roof with FOPS for unobstructed upward visibility when working with a front loader. No matter what applications you need to cover, the comfortable cab of the new 5D Keyline series motivates all drivers to deliver top performance.
