КОНЦЕНТРАЦИЯ НА МОЩНОСТ И ЕФЕКТИВНОСТ

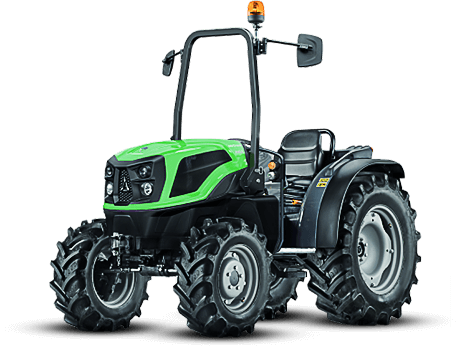

Новата серия 3, която се предлага в три модела, 3050 Narrow, 3050 и 3060, е плод на усъвършенстваната технология DEUTZ-FAHR и разполага с мощен нов, електронно управляван двигател Stage V Common Rail. Тракторите от серия 3 се отличават с едно от най-добрите съотношения мощност / тегло в своята категория и представляват идеалното решение в ситуации, които изискват комбинация от лекота и мощност. Това са машини, проектирани да гарантират максимална производителност в разсадници, оранжерии и овощни градини, но също така и за поддръжка на общи и зелени площи. В допълнение, благодарение на ниските си разходи за поддръжка и лекотата на използване, Серия 3 също представлява идеалният избор за по-ангажирания любител.
The new engines of emission Stage V are not only environmentally friendly and clean, but also extremely economical in fuel consumption and efficient thanks to the new low-speed concept and Common Rail injection with electronic engine management. Thanks to the large displacement of 2.2 l of the 4-cylinder engine and the maximum power of 60 HP new perspectives are opening up for these tractors. The fuel tank has a volume of 40 litres.
A wide range of working speeds makes the new Series 3 adaptable. The maximum speed of 30 km/h is reached at reduced engine speed (2295 rpm). The robust synchronized 12+12 speed gearbox offers the optimal working speed in any working condition. The creeper transmission with four additional gears (16+16) for work where low speeds are required can also be extremely
advantageous. A special mechanically synchronized shuttle lever ensures smooth directional changes with little effort. An agile tractor, which can be used without any problems even on difficult terrain thanks to the electrohydraulically switchable differential lock.
The generously dimensioned driver’s platform with foldable ROPS rests on silent block that muffle most of the machine
noise and vibrations. A mechanical suspension seat with adjustable damping enables comfortable working. The fully
glazed and comfortable cabin, whose rear and front windows can be opened, and the optional air conditioning system combine maximum comfort with unique ease of use. The cabin is factory fitted and specifically designed by the manufacturer for this kind of tractors.
Only optimum mounting space makes a tractor a universal working machine. The 3 Series offers three mounting spaces. The Series 3 offers three mounting spaces:
at the rear, in the intermediate axle area and at the front. The powerful hydraulic system, the rear PTO with up to 3 speeds and the rear linkage with 1,200 kg lifting capacity make the tractor, together with the ventral PTO and the front attachment space, a particularly versatile tractor.
The new 2200 cm³, 4 cylinder engine features a turbocharger with
waste-gate valve and common rail injection up to a maximum of 1800 bar,
thus guaranteeing excellent performance and limited fuel consumption.
Conformity to Stage V is guaranteed thanks to the implementation of the
EGR, DOC and DPF, none of which require any regular maintenance or
additional injections of diesel. The new engine delivers maximum power
at 2600 rpm, approximately 400 rpm less than Stage III A engines with
comparable power and displacement specifications.
The result of this is not only a reduction in noise and vibration levels and fuel consumption, but also torque delivery that is optimised for agriculture uses, communal applications and the maintenance of green spaces. Thanks to the electronic management system, the engine installed on the 3050 version generates 51 hp (rising to 59 hp in the case of the 3060 model), without the need for an intercooler; this represents a considerable advantage for super-compact tractors, reducing the size of the bonnet while rendering the cooling and maintenance of the main radiator more efficient.
The fully mechanical and completely synchronised speed change system guarantees high levels of reliability and efficiency, maximising the power transferred to the wheels and limiting fuel consumption, irrespective of working conditions, while also increasing towing capacity. The fully mechanical and completely synchronised speed change system guarantees high levels of reliability and efficiency, maximising the power transferred to the wheels and limiting fuel consumption, irrespective of working conditions, while also increasing towing capacity. All Series 3 models are equipped with a 3 x 4 speed gearbox with shuttle as standard, offering a total of 12 forward and 12 reverse gear ratios, which allow the machine to be operated at a forward speed of just 0.96 km/h (0.87 km/h in the case of the 3050 Narrow version) at the lowest gear ratio and the engine running at full speed, and a top speed of 30 km/h with the engine at partial capacity, so as to limit noise, vibration and fuel consumption.

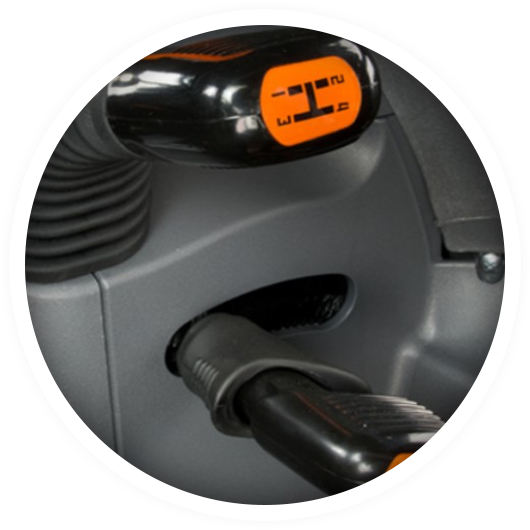

For applications that require ultra-low speeds, the machines may also be equipped with an optional super-creeper gear, which, in addition to increasing the number of available gear ratios to 16 + 16, makes it possible to achieve speeds of just 260 metres per hour (230 metres/h in the case of the 3050 Narrow version). The gearbox control levers are positioned ergonomically under the steering wheel. To optimise traction under the most difficult conditions, simultaneous 100% locking of both differentials is standard on all models, complete with an electro-hydraulic control system.
The PTO, which is completely independent of the main transmission, is fitted as standard as the rear version and features the traditional 540 rpm mode; it can be engaged easily and rapidly, thanks to ergonomically designed control device. The machine may also be fitted with the optional 540 ECO version upon request, or the 1000 rpm mode, both of which are also synchronised to changes in vehicle speed. The PTO, which is completely independent of the main transmission, is fitted as standard as the rear version and features the traditional 540 rpm mode; it can be engaged easily and rapidly, thanks to ergonomically designed control device. The machine may also be fitted with the optional 540 ECO version upon request, or the 1000 rpm mode, both of which are also synchronised to changes in vehicle speed. A electro-hydraulically operated 1000 rpm frontal PTO option is also available, while, in order to increase versatility even further, a machines may also be supplied with a bottom-mounted 2000 rpm version, ideal for maintenance of green spaces.

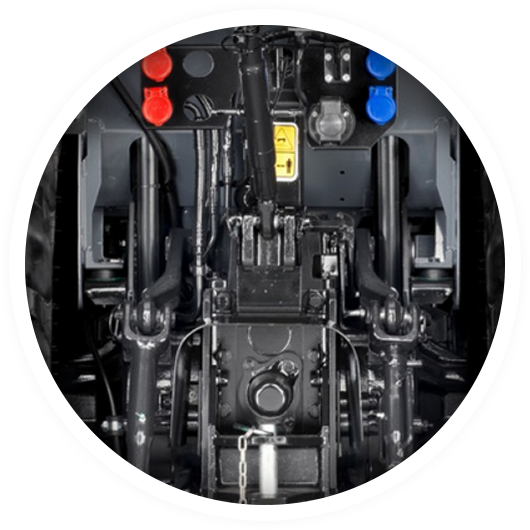

Thanks to a level of accessories that is unrivalled in their category DEUTZ-FAHR Series 3 tractors are ideally suited for use with a vast range of tools. The standard configuration includes a 30 l/min hydraulic pump dedicated to the rear lifter, which offers a load capacity of 1320 kg, and the rear, 4-way distributors (also available as an optional 6-way version). An additional 15 l/min pump is dedicated exclusively to the power steering system, guaranteeing ease of steering and manoeuvrability even at low engine speeds and under maximum load conditions. The rear lifter, which features strain control as standard, is available with category a 1 and 2 three-point linkage, which may also be fitted with quick hitch couplers. Thanks to a level of accessories that is unrivalled in their category DEUTZ-FAHR Series 3 tractors are ideally suited for use with a vast range of tools.

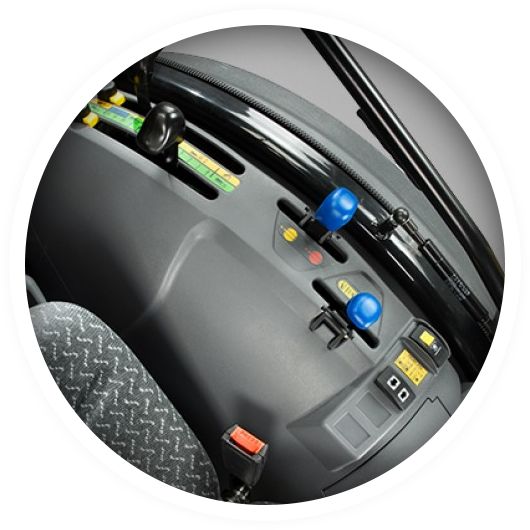

The standard configuration includes a 30 l/min hydraulic pump dedicated to the rear lifter, which offers a load capacity of 1320 kg, and the rear, 4-way distributors (also available as an optional 6-way version). An additional 15 l/min pump is dedicated exclusively to the power steering system, guaranteeing ease of steering and manoeuvrability even at low engine speeds and under maximum load conditions. The rear lifter, which features strain control as standard, is available with category a 1 and 2 three-point linkage, which may also be fitted with quick hitch couplers. The hydraulic control levers are handily positioned on the right hand mudguard. The availability of a front lifter having a load capacity of 730 kg, together with two (duplicate) front-mounted hydraulic ports and/or two bottom-mounted hydraulic ports, further enhance the versatility of this small but complete tractor.
Series 3 tractors are fitted with axles specially-designed by the manufacturer. In particular, the 3050 Narrow version features dedicated axles that, in addition to reducing the overall height of the machine, also limit its width, guaranteeing a wheel gauge of just 1.1 metres. In the case of the 3050 model, it is possible to opt for wider axles, or the Heavy Duty version, fitted as standard on 3060 models.Series 3 tractors are fitted with axles specially-designed by the manufacturer. In particular, the 3050 Narrow version features dedicated axles that, in addition to reducing the overall height of the machine, also limit its width, guaranteeing a wheel gauge of just 1.1 metres. In the case of the 3050 model, it is possible to opt for wider axles, or the Heavy Duty version, fitted as standard on 3060 models.The elevated steering angle, coupled with the reduced wheelbase typical of vehicles in this category, means that Series 3 range is able to guarantee excellent manoeuvrability, even in the tightest of spaces.

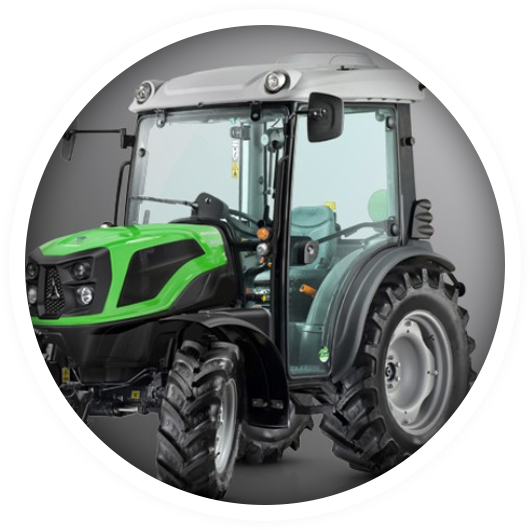

The new DEUTZ-FAHR Series 3 models are also available with a two-pillar fold-down front ROPS, or with a spacious 4-pillar high visibility cab designed specifically by the manufacturer for this range of machines. The new DEUTZ-FAHR Series 3 models are also available with a two-pillar fold-down front ROPS, or with a spacious 4-pillar high visibility cab designed specifically by the manufacturer for this range of machines. The intelligently designed interior and rational control layout offer an ergonomic working environment, while the spacious driver zone and effective air conditioning system take operator comfort even further. Other distinguishing features include the new, highly ergonomic steering wheel, and the telescopic steering column. The cabin versions include a range of heating and ventilation functions as standard, while an optional air conditioning system, complete with an over-capacity rated compressor unit, is also available. Additional options include active carbon air filters and a rear windscreen wiper.
