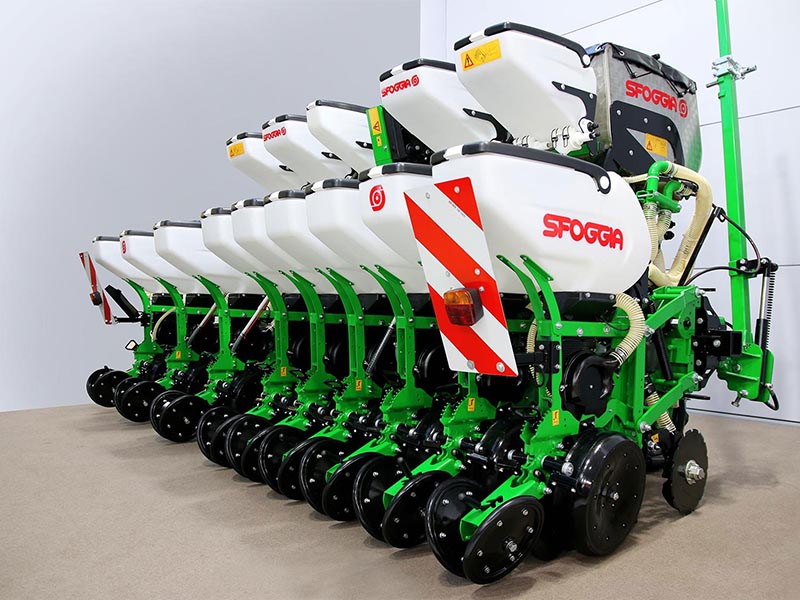

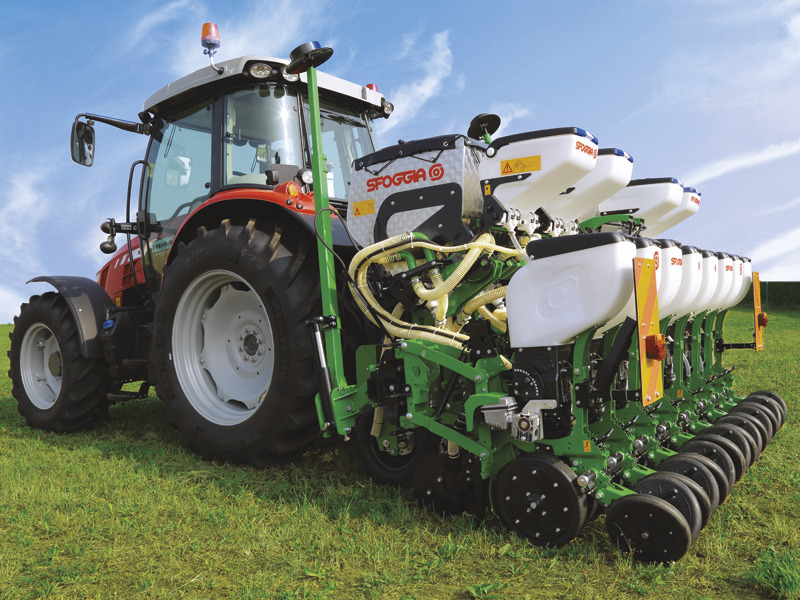

AIR 2.5 and AIR 3 are the new expression of
technology, efficiency, strength and practicality in the range of vacuum
precision planters with adjustable inter-row space. Been born for
suiting to the different inter-row spaces, AIR 2,5 and AIR 3 have been
developed with some innovative details: the mono frame, that makes the
planter shortest and much more manageable; the number of telescopic
beam of the frame are reduced to one for AIR 2.5 and two for AIR 3,
getting less weight, but at the same time more strenght and less
exposure to the wear and tear; easy change of ties to reduce the
inter-row-space changing, availability of the Standard Version, Plus and
Elektra Drive, to meet the most demanding requirements.

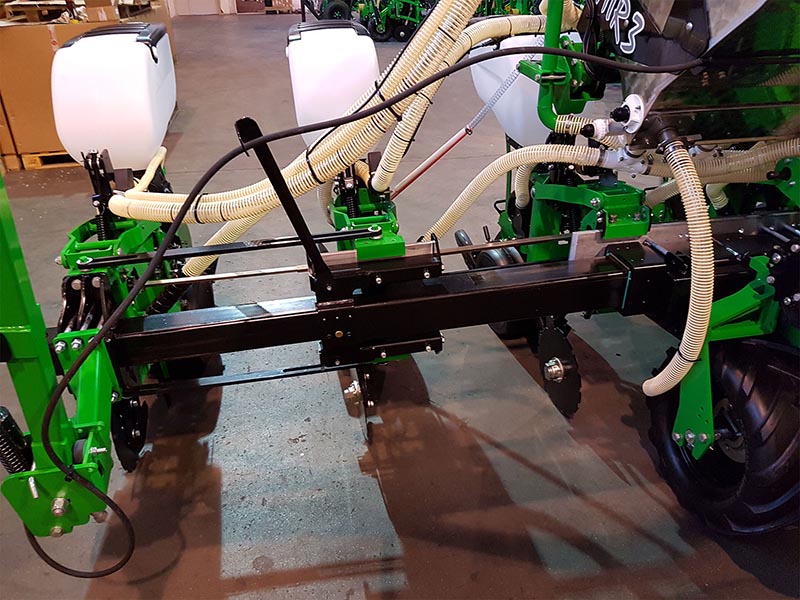

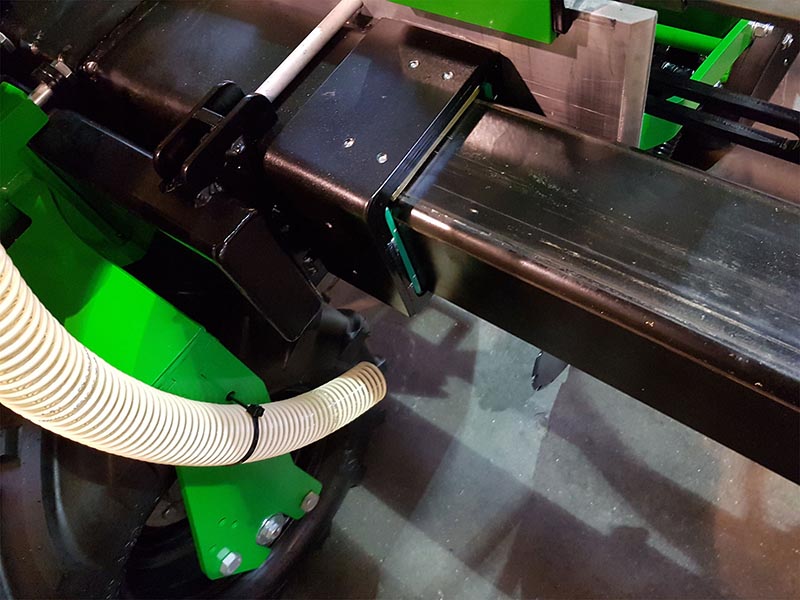

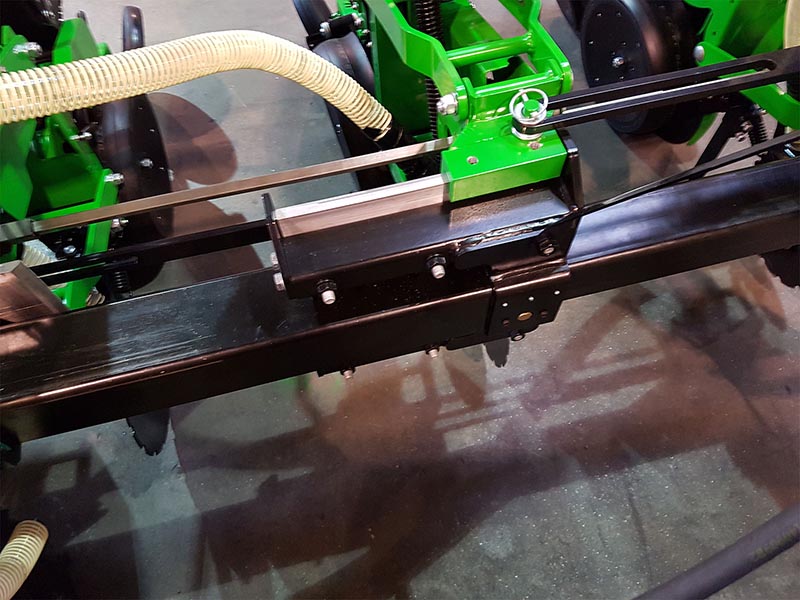

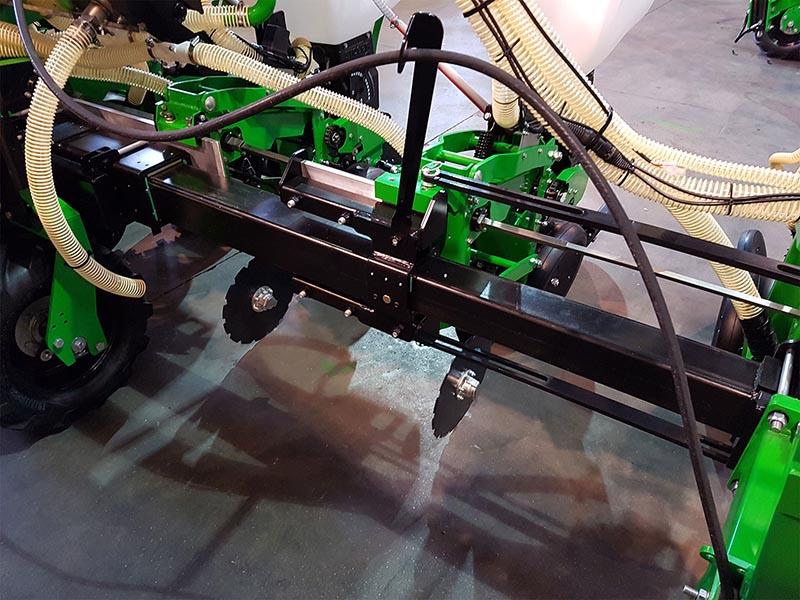

The innovative frame AIR 2.5 and AIR 3, unique in the market to be a mono beam, gives the machine the ability to adapt easily to the various crop inter-row space, the variation of these is simple thanks to the replacement of practical and simple tie rods. Air 2.5 is available on the version 6-6, 6-7, 8x45 with 2,5 m transport width. Air 3 is available on the version 8-8, 8-9 with road transport width 3,0 m. Telescopic beams of frame run on long adjustable guides.

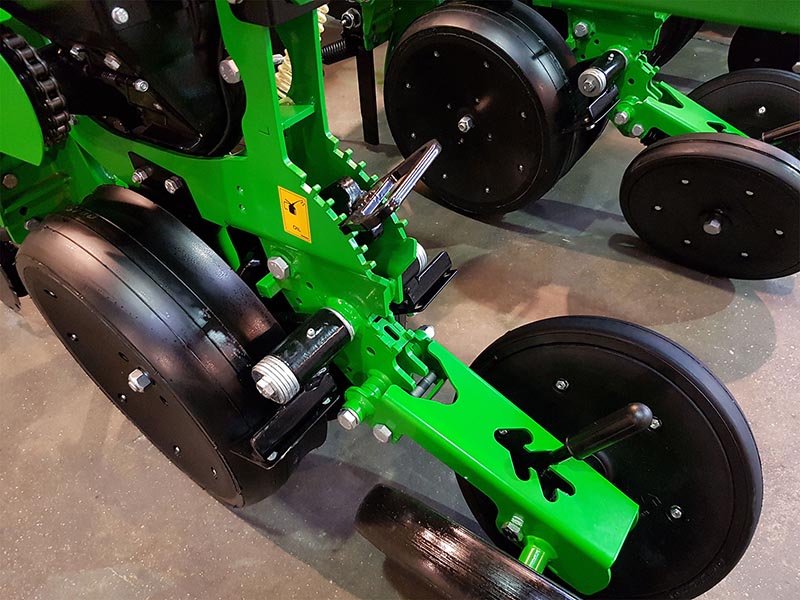

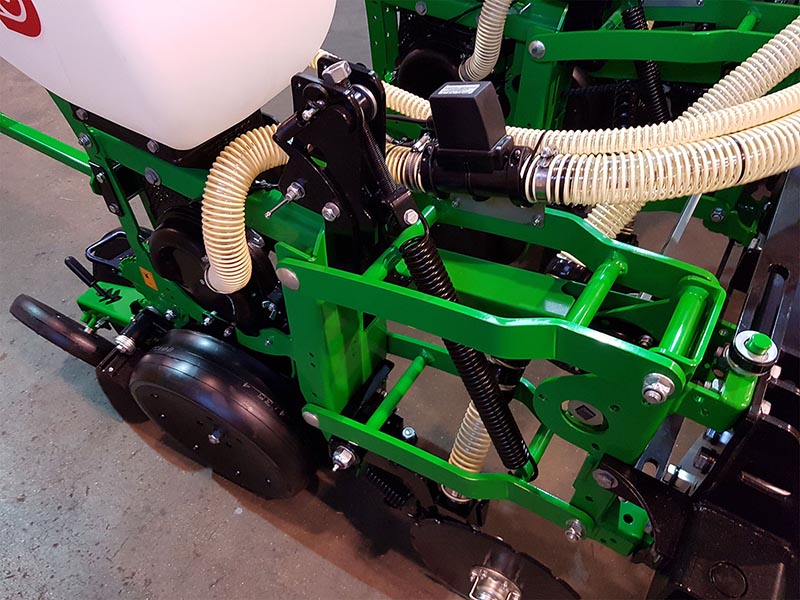

The internal planting units seedlings run over an aluminum alloy plate very robust and lightweight at the same time. The external planting units are hooked directly to the beam and give the opening and closing movement to the sowing elements internally by means of replaceable tie rods.

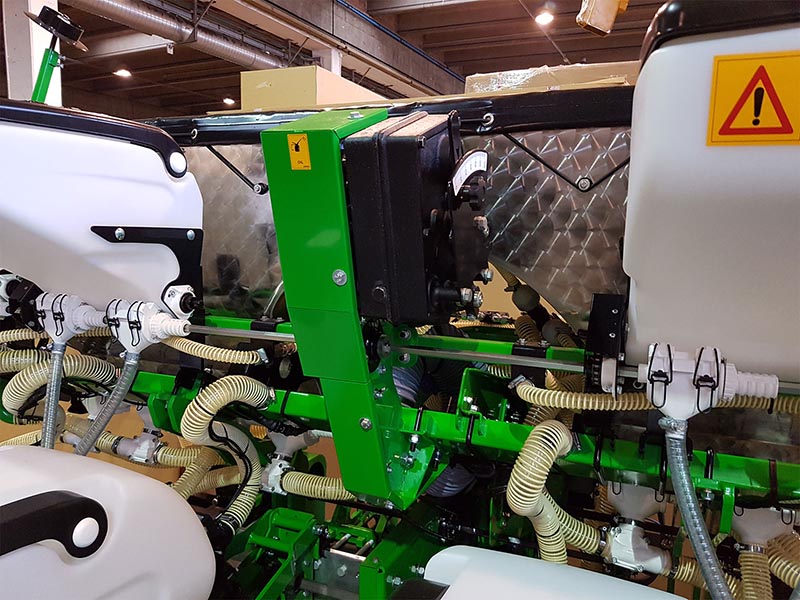

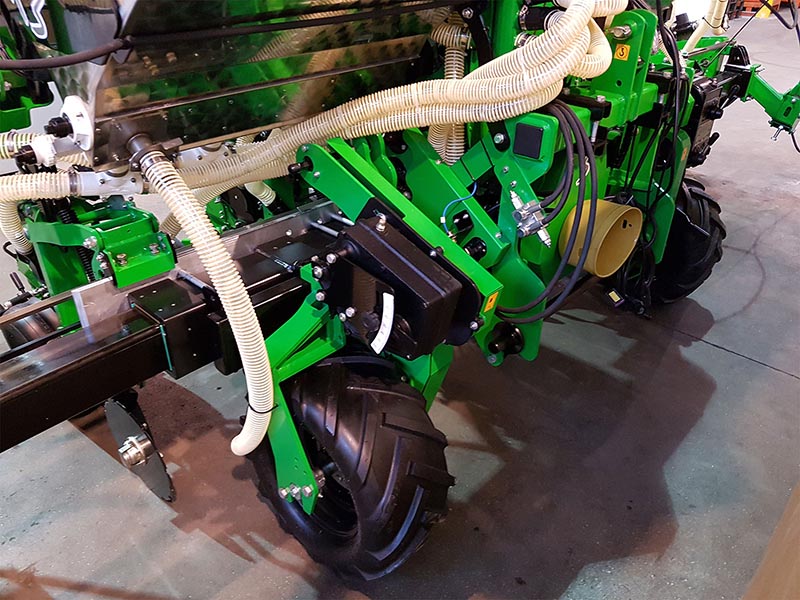

Available Version AIR 2.5 and AIR 3 with ELEKTRA Drive, the total electronic management of the machine, to get even higher performance. The operator, comfortably seated in the tractor cab, sets sowing parameters in a touch screen console. An electronic control unit processes the set data and gives control to electronic motors that operate and control the sowing disc. An alternator,connected to the seed drill fan, continuously recharges the battery of the Planter that provides the required power to operate. If the machine is equipped with fertilizer hopper and / or microgranulators, the Elektra Drive system is also responsible for controlling and driving these accessories.

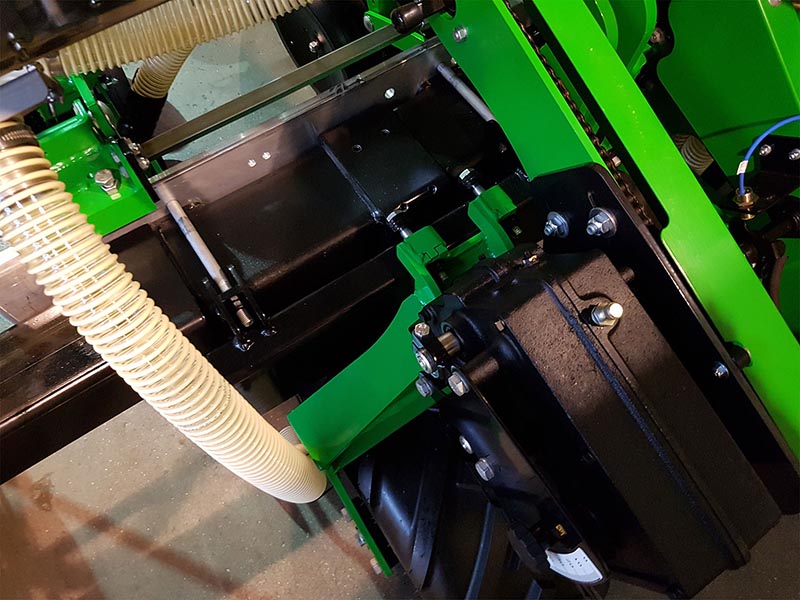

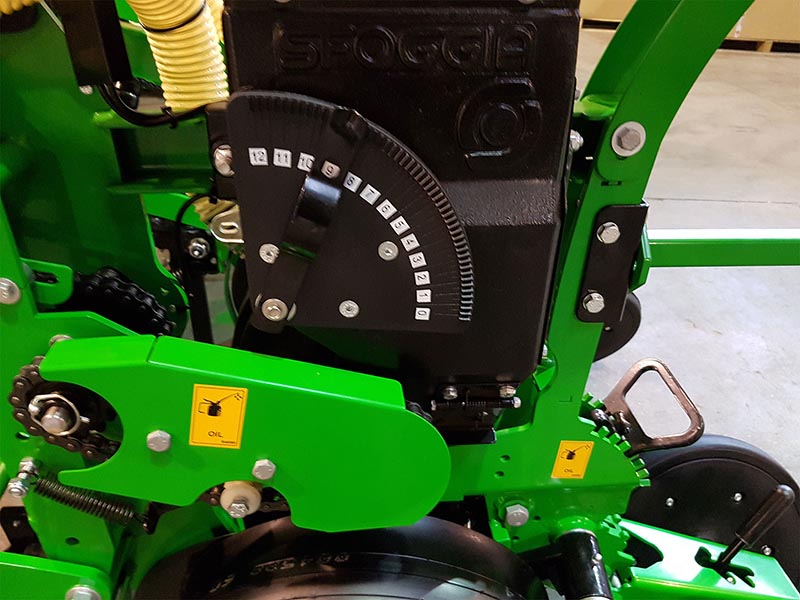

As standard, the proven double-chain mechanical transmission guarantees precision and reliability. This system ensures a precise and constant rotation of the sowing disc, even on Imperfect soils. The chain is also very robust, subject to low wear, and easily found.
Studied in every detail, Air 2.5 and Air 3 have been designed to fully satisfy the most demanding operators, those who can not afford to stop machines in the seeding season. All mechanical parts are built within the company Sfoggia, to have complete control of the raw materials, the production process and the quality of the finished product. Component parts are of prime choice and easy to find in the market.
