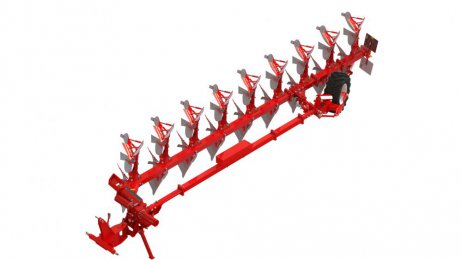

EUROPA II 180 are five to nine-ploughshare semi-mounted reversible ploughs designed for tractors from 135 horsepower.

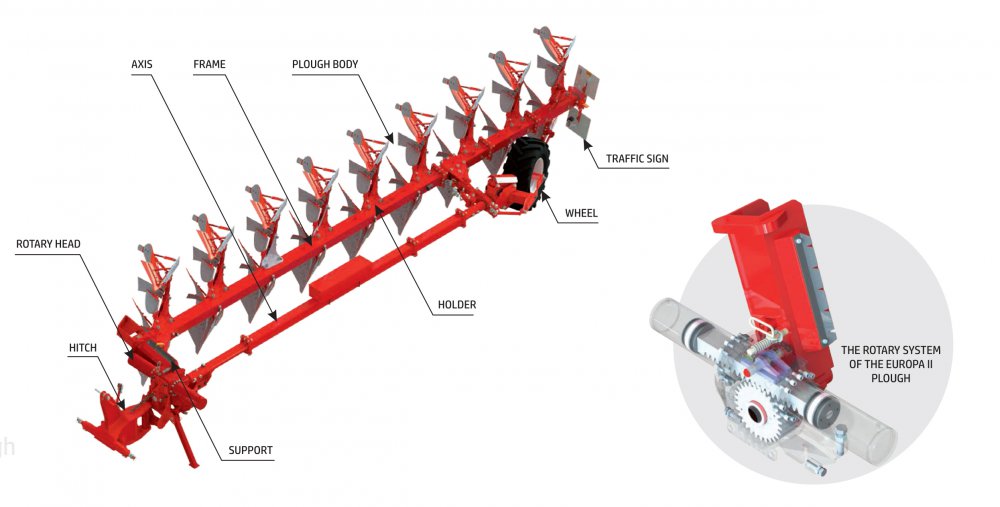

The plough rotation system consists of two opposite piston rods connected by a ridge rod bearing on a gear that rotates the main frame with the plough bodies.
In design, emphasis is placed on quality workmanship combined with long life of all components.
The main frame of the plough is constructed from a high-strength square tube with a profile of 180 x 180 x 10 mm, giving the plough stiffness and durability. The most durable materials used in the other parts of the plough are further refined in the production conditions in order to achieve a high quality product with high utility value.
| Technical parameters | Unit | EUROPA II | ||||
| Number of ploughshares | pcs | 5 | 6 | 7 | 8 | 9* |
| Working width of one ploughshare | cm | 35/40/45 | ||||
| Total working width of the plough | cm | 175/200/225 | 210/240/270 | 245/280/315 | 280/320/360 | 315/360/405 |
| Clearance under the frame | cm | 80 | ||||
| Recommended operating speed | cm | 100 | ||||
| Recommended operating speed | km/h | 7 | ||||
| Weight of the plough ** | ||||||
| - shearing | kg | 3045 | 3370 | 3695 | 3985 | 4310 |
| - spring | kg | 3320 | 3705 | 4090 | 4435 | - |
| Tractor | kW | 106 - 132 | 130 - 170 | 160 - 210 | 180 - 240 | 200 - 280 |
| Tractor | k.hp | 145 - 180 | 175 - 230 | 215 - 270 | 240 - 320 | 270 - 380 |
| Type | Unit | UN 350 univers | UN 400 univers | PA 400 slatted | KV 9 semihelicoidal | KV 28 semihelicoidal |
| Max. depth of ploughing | ||||||
| - without cutting coulters | cm | 28 | 32 | 32 | 28 | 28 |
| - with cutting coulters | cm | 33 | 36 | 36 | 33 | 33 |
* only for variants with shear hub protection of the ploughshares
** the weight is only indicative and may vary according to the selected machine
