Cambridge rollers VIRGO
Арт.№: IRI608
Принтирай Изпрати по мейл

  1. Cambridge rollers VIRGO iritrade
  2. Cambridge rollers VIRGO iritrade
  3. Cambridge rollers VIRGO iritrade
  4. Cambridge rollers VIRGO iritrade

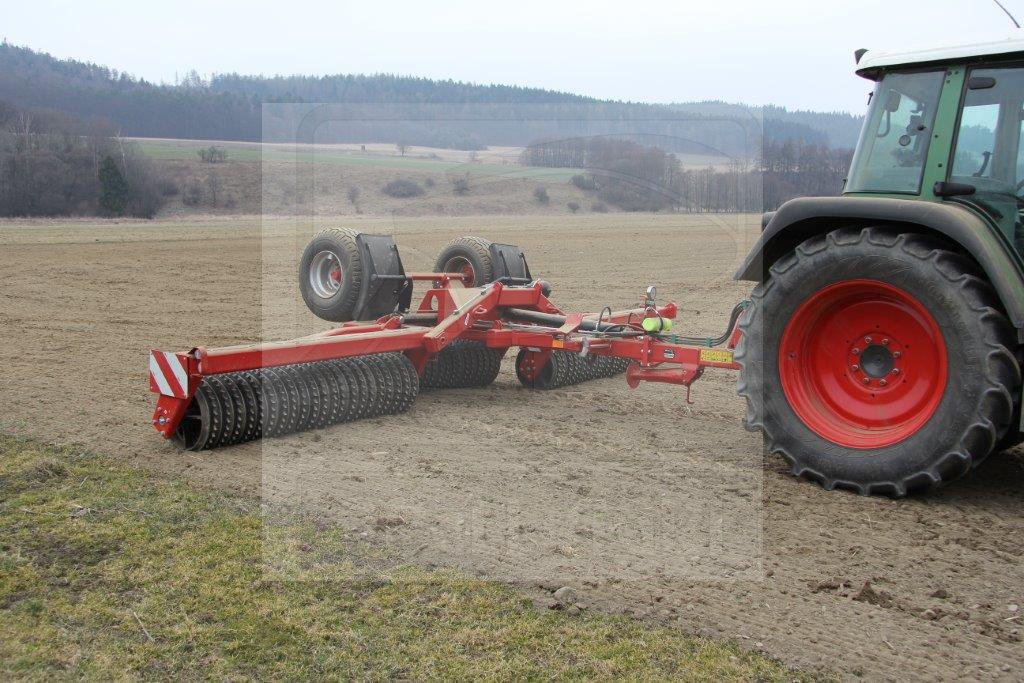

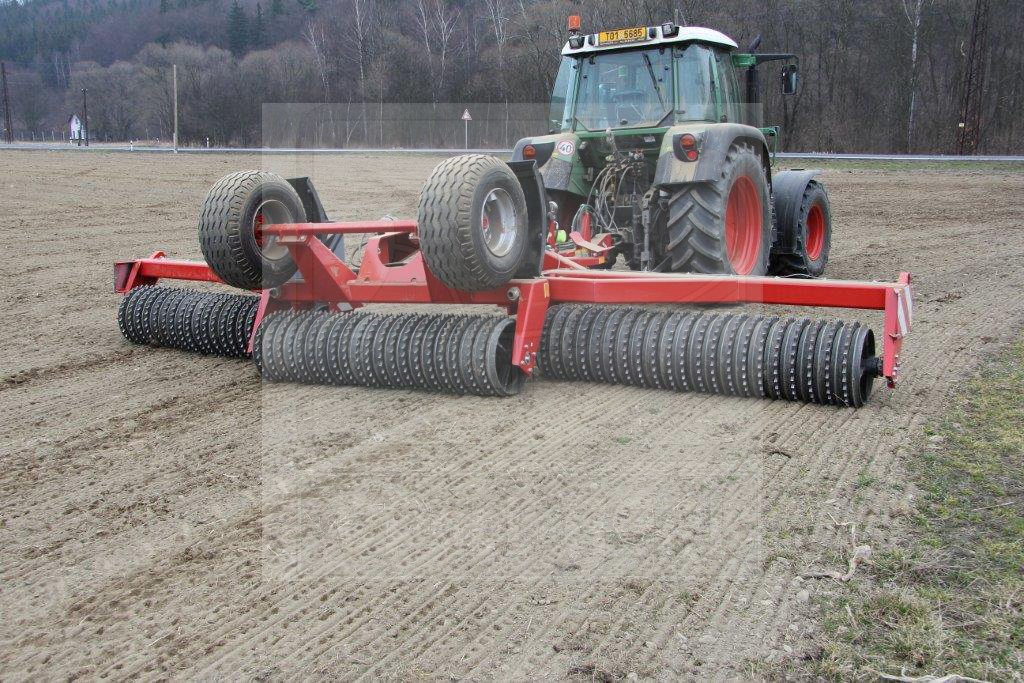

VIRGO Cambridge rollers can be used as a machine for pressing soil after sowing. In the case of applying flexible shear, the machine can also be used to remove a rough furrow for soil preparation before sowing. The large diameter of the rollers combined with high quality cast iron guarantees a long service life and high utility value. The Virgo features comfortable, fully hydraulically controlled unfolding to the working position and back. The machines are produced in the widths of 6.3 and 8.3 m and can also be fitted with a seeding machine for sowing the intercrop.

За въпроси и повече информация
0700 10 445

Описание


Unfolding
1. Firstly, extend the wing frame just above their supports using a central hydraulic roller
2. Using the hyd. cylinder of the wings, unfold the wings up to the level of 180°
3. Using the central roller, turn the machine from the castors to the work sections
4. In the end phase of the turning, it is necessary to move slightly so that the work sections are optimally seated on the ground. The machine is ready for work.

Folding
1. Use the central roller to turn the machine from the working sections to the castors
2. Using the hydraulic roller wings, fold the wings to the level in front of their supports
3. Lift the wings above the supports, close them fully and place them in the supports. The machine is ready for transport.

Technical parameters

VIRGO 6,3

VIRGO 8,3

Pracovní šířka  (m)

6,3

8,3

Tractor output  (hp)

95(*160)

150(*210)

Weight (kg)

3720**

5950**

Working speed (km/h)

4-12

4-12
