Cambridge rollers VEGA
Арт.№: IRI607
Принтирай Изпрати по мейл

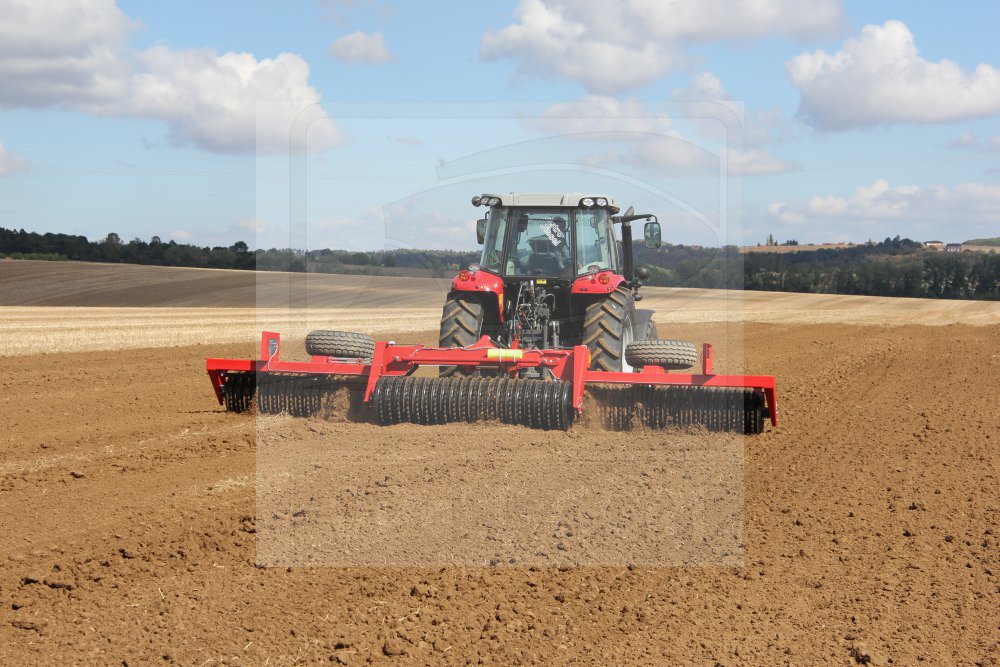

  1. Cambridge rollers VEGA iritrade

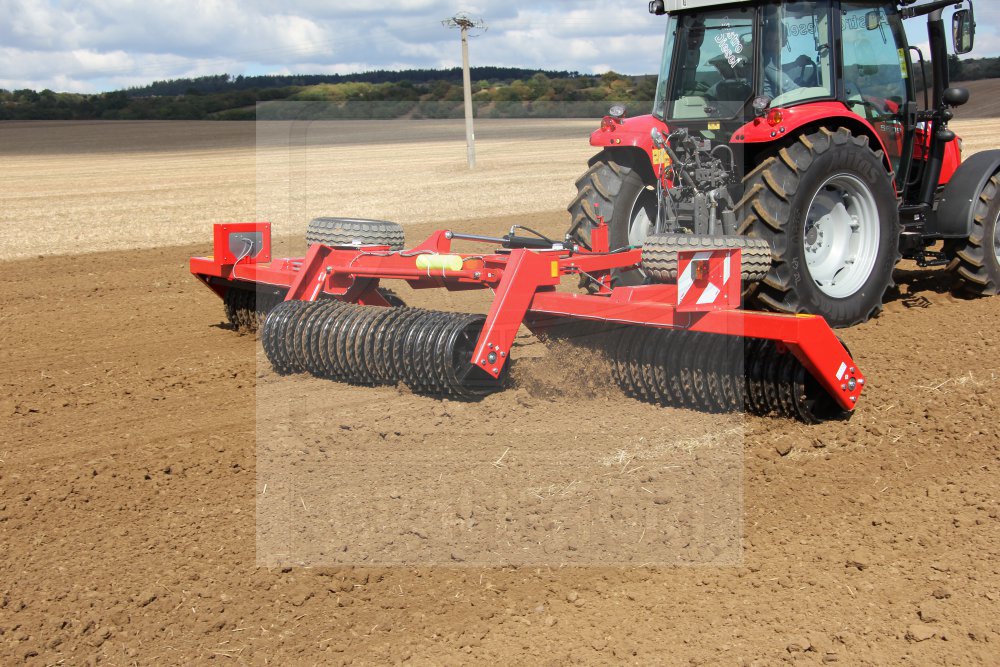

  2. Cambridge rollers VEGA iritrade

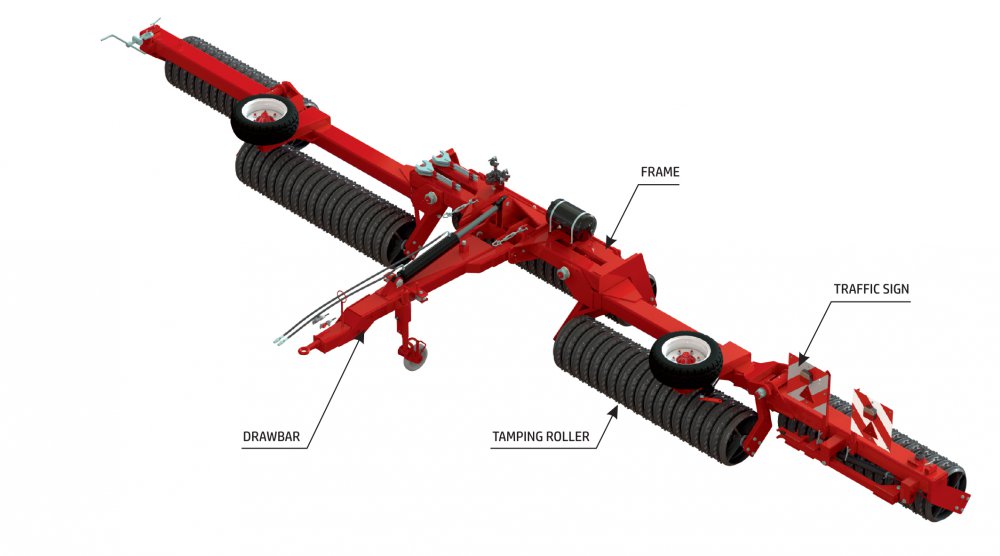

  3. Cambridge rollers VEGA iritrade

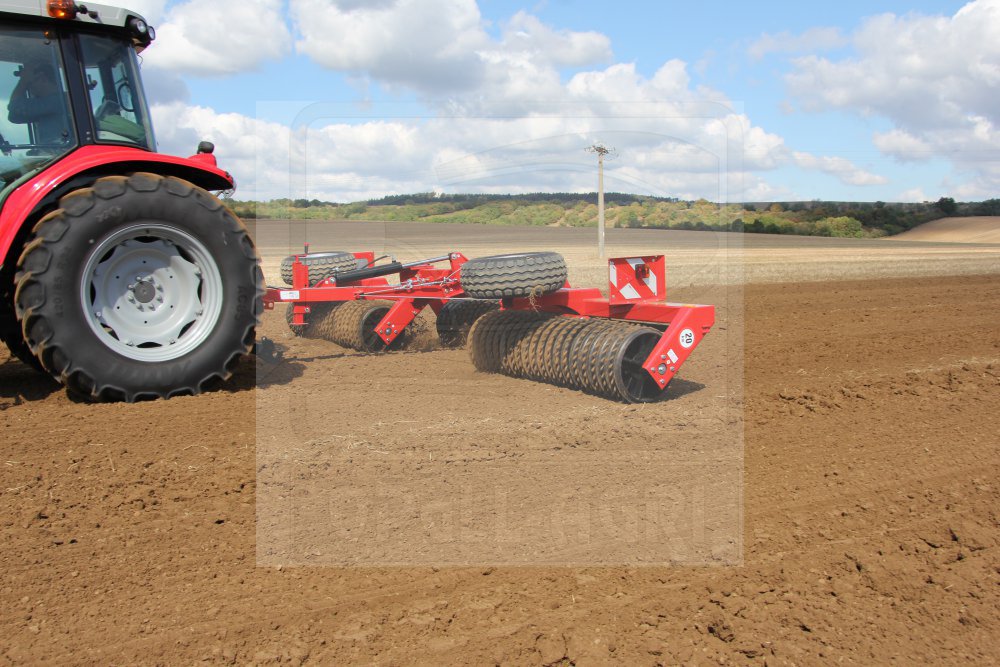

  4. Cambridge rollers VEGA iritrade

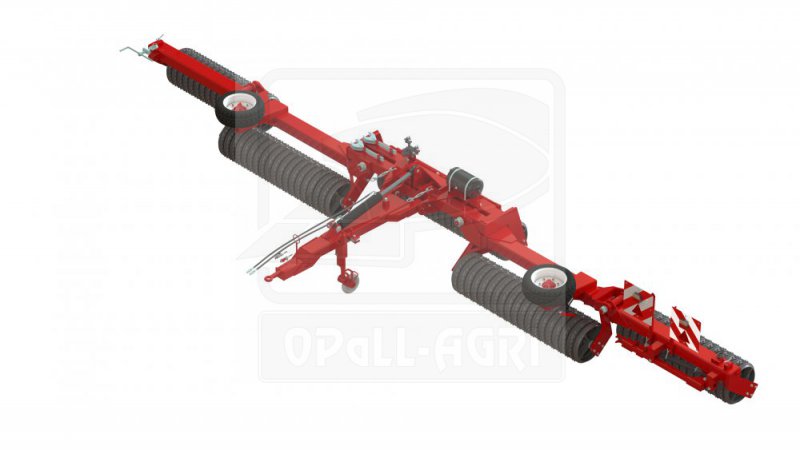

  5. Cambridge rollers VEGA iritrade

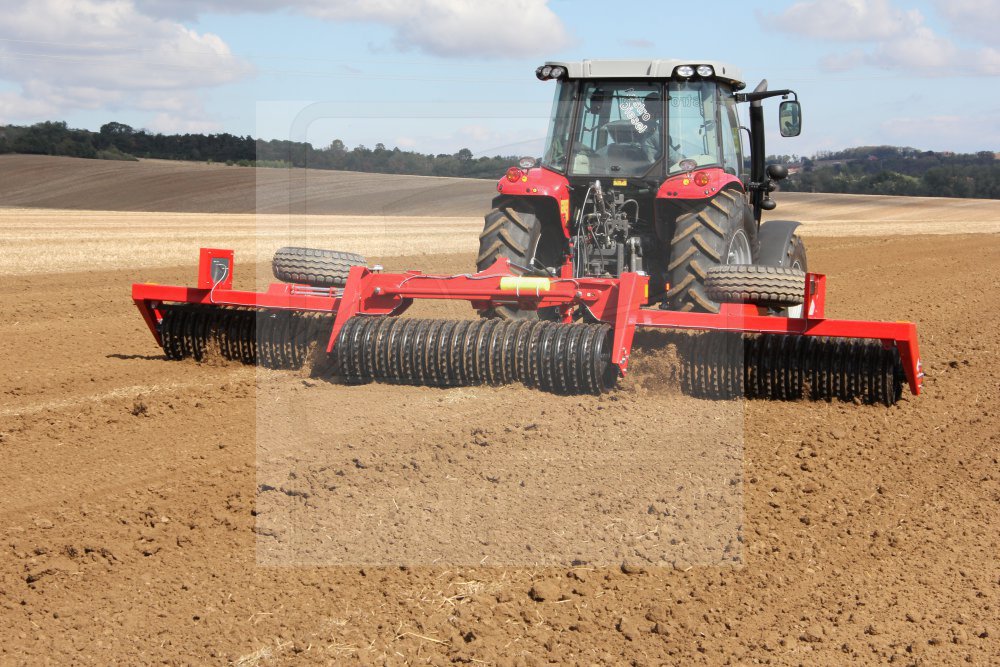

  6. Cambridge rollers VEGA iritrade

VEGA Cambridge rollers find use primarily as a machine for pressing the soil after sowing.

The large diameter of the rollers combined with high quality cast iron guarantees a long service life and high machine utility value.

Working widths of 3 to 9.2 m cover the wide power range of tractors used.

За въпроси и повече информация
0700 10 445

Описание


Unfolding and folding (applies to version 4.5 and above)

- the drive wheels are positioned towards the frame of the machine with a slight convergence
- when unfolding, firstly remove the connecting rod at the back of the machine that secures the machine in the transport position. By turning the wheels toe-out, the machine starts opening while rolling back slowly until the arms of the side rollers touch the stops. Then, by means of the hydraulic circuit, fold the machine into the working position and fasten the auxiliary ropes which reduce the tension of the pins while pulling forward.

Technical parameters

VEGA 3 P*

(mounted)

VEGA 3

(mounted)

VEGA 4,5

(semi-mounted, foldable)

VEGA 6

(semi-mounted, foldable)

VEGA 6,3

(semi-mounted, foldable)

VEGA 7

(semi-mounted, foldable)

VEGA B 9,2

(semi-mounted, foldable)
Working width (m) 3 3 4,5 6 6,3 7 9,2
Tractor output  (hp) 40 - 80 40 - 80 70 - 100 80 - 130 85 - 135 90 - 140 120 a více
Weigh (kg) 1200 800 2050 2580 2960 316 4610
Working speed  (km/h) 4-12 4-12 4-12 4-12 4-12 4-12 4-12
